Stranded Wire Cables and Solid Wire Cables Manufacturer |
|
|
| |
Construction: Plain Annealed Copper Conductor /Aluminum Conductor as per IS: 8130-1984
PVC Insulation: Type A of IS: 5831-1984 (General purpose)
(1) Single Core.
(2) Twin, Three, Four (Circular) Cores laid up filled, where necessary, with suitable material PVC sheath ST-1 of IS: 5831 (General purpose).
For Flat Twin with or without E.C.C., Flat Three Core, PVC sheath Type of IS: 5831(General Purpose) PVC Insulation: Type A of IS: 5831 --- 1984 (General Purpose)
Twin or Three Cores laid flat for Twin with E.C.C. the position of E.C.C. center in the same plan.
Colour for Core identification & colour sequence:
(1) Single Core - Red, Black, Yellow or Blue.
(2) Two Core - Red & Black,
(3) Three Core - Red, Yellow & Blue
(4) Four Core - Red, Yellow, Blue & Black
Colour of sheath - Black, White or Grey & Black for weather proof Cables.

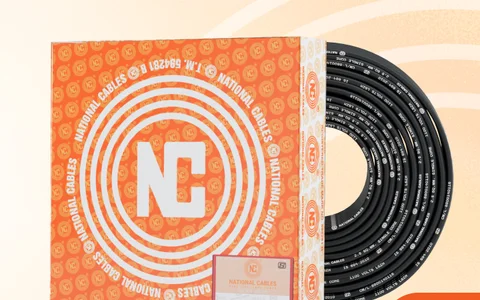

Single Core, Pvc Insulated Unshethed Cables 1100V Grade to IS: 694/1990
| Single Core Pvc Insulated Unsheathed Cables 1100V TO IS:694/1990 |
Construction: Plain Annealed Copper Conductor/Aluminum as per IS:8130-1984 |
Pvc Insulation: Type A of IS:5831-1984 Color For Core Identification: Red, Black, Yellow, White or Grey. |
| Conductor:Nominal Cross Sectional Area |
No. & Nominal Diameter of Wire |
Nominal Thickness of Insulation |
| (mm) |
(mm) |
(mm) |
| *1.0 |
1/1.13 |
0.7 |
| *1.0 |
3/0.65 |
0.7 |
| 1.5 |
1/1.38 |
0.7 |
| 1.5 |
3/0.80 |
0.7 |
| 2.5 |
1/1.78 |
0.8 |
| 2.5 |
3/1.04 |
0.8 |
| 4 |
1/2.25 |
0.8 |
| 4 |
7/0.85 |
0.8 |
| 6 |
1/2.76 |
0.8 |
| 6 |
7/1.04 |
0.8 |
| **10 |
1/3.57 |
1.0 |
| 10 |
7/1.35 |
1.0 |
| 16 |
7/1.70 |
1.0 |
| 25 |
7/2.14 |
1.2 |
| 35 |
7/2.52 |
1.2 |
| 50 |
19/1.78 |
1.4 |
| 70 |
19/2.14 |
1.4 |
| 95 |
19/2.52 |
1.6 |
| 120 |
37/2.03 |
1.6 |
| 150 |
37/2.25 |
1.6 |
| 185 |
37/2.52 |
2.0 |
| 240 |
61/2.25 |
2.2 |
| 300 |
61/2.52 |
2.4 |
| 400 |
61/2.85 |
2.6 |
| 500 |
61/3.20 |
2.8 |
| 630 |
91/2.98 |
2.8 |
| Nominal Cross Sectional Area of Condr |
Nominal Thickness Of Insulation |
Single Core |
Nominal Thickness of Sheath |
Nominal Cross Sectional |
| Twin Core |
Three Core |
Four Core |
Area of ECC |
|
|
|
| (mm.) |
(mm.) |
(mm.) |
(mm.) |
(mm.) |
(mm.) |
(mm.) |
| *1.0 |
0.6 |
0.8 |
0.9 |
0.9 |
0.9 |
1.0 |
| 1.5 |
0.6 |
0.8 |
0.9 |
0.9 |
0.9 |
1.5 |
| 2.5 |
0.7 |
0.8 |
1.0 |
1.0 |
1.0 |
1.5 |
| 4 |
0.8 |
0.9 |
1.0 |
1.1 |
1.1 |
1.5 |
| 6 |
0.8 |
0.9 |
1.1 |
1.1 |
1.2 |
2.5 |
| 10 |
1.0 |
0.9 |
1.2 |
1.2 |
1.3 |
4.0 |
| 16 |
1.0 |
1.0 |
1.3 |
1.3 |
1.4 |
6.0 |
| 25 |
1.2 |
1.1 |
1.4 |
1.5 |
1.6 |
.. |
| 35 |
1.2 |
1.1 |
1.5 |
1.6 |
1.7 |
.. |
| 50 |
1.4 |
1.2 |
1.6 |
1.7 |
1.8 |
.. |
|
|
|
